Erik Buell Racing Ebr 1190rs

EBR 1190RS

Make Model.	EBR 1190RS
Year	2012
Production	100 units
Engine	Four stroke, 72� V-Twin, DOHC
Capacity	1190 cc / 72.6 cu in
Bore x Stroke	106 x 67.5 mm
Compression Ratio	13.6 :1
Co oling System	Liquid cooled
Induction	Dual �61 mm throttle bodies
Starting	Electric
Clutch	Wet multi-plate, slipper
Max Power	130 kW / 175 hp @ 9750 rpm
Max Torque	131 Nm / 13.36 kgf-m / 97 ft-lbs @ 9400 rpm
Transmission	6 Speed
Final Drive	520 Chain, 16/41
Gear Ratio	1^st 2.46 / 2^nd 1.75 / 3^rd 1.38 / 4^th 1.17 / 5^th 1.04 / 6^th 0.96
Rake	22 �
Trail	86 mm / 3.4″
Frame	Aluminum frame with integral fuel reservoir. Swingarm optimized stiffness aluminum
Front Suspension	�43 mm Ohlins inverted fork, adjustable compression damping, rebound damping adjustable spring preload
Rear Suspension	Ohlins fully adjustable TTX coil over monoshock with remote reservoir
Front Brakes	�375 mm ISO finned rotor, 8 piston caliper with cooling duct
Rear Brakes	Single 240mm disc 2 piston floating caliper
Front Tyre	120/70R- 17
Rear Tyre	190/55R-17
Seat Height	775 mm / 30.5 in
Wet Weight (No Fuel)	176 kg / 389 lbs
Fuel Capacity	17 Litres / 4.5 US gal

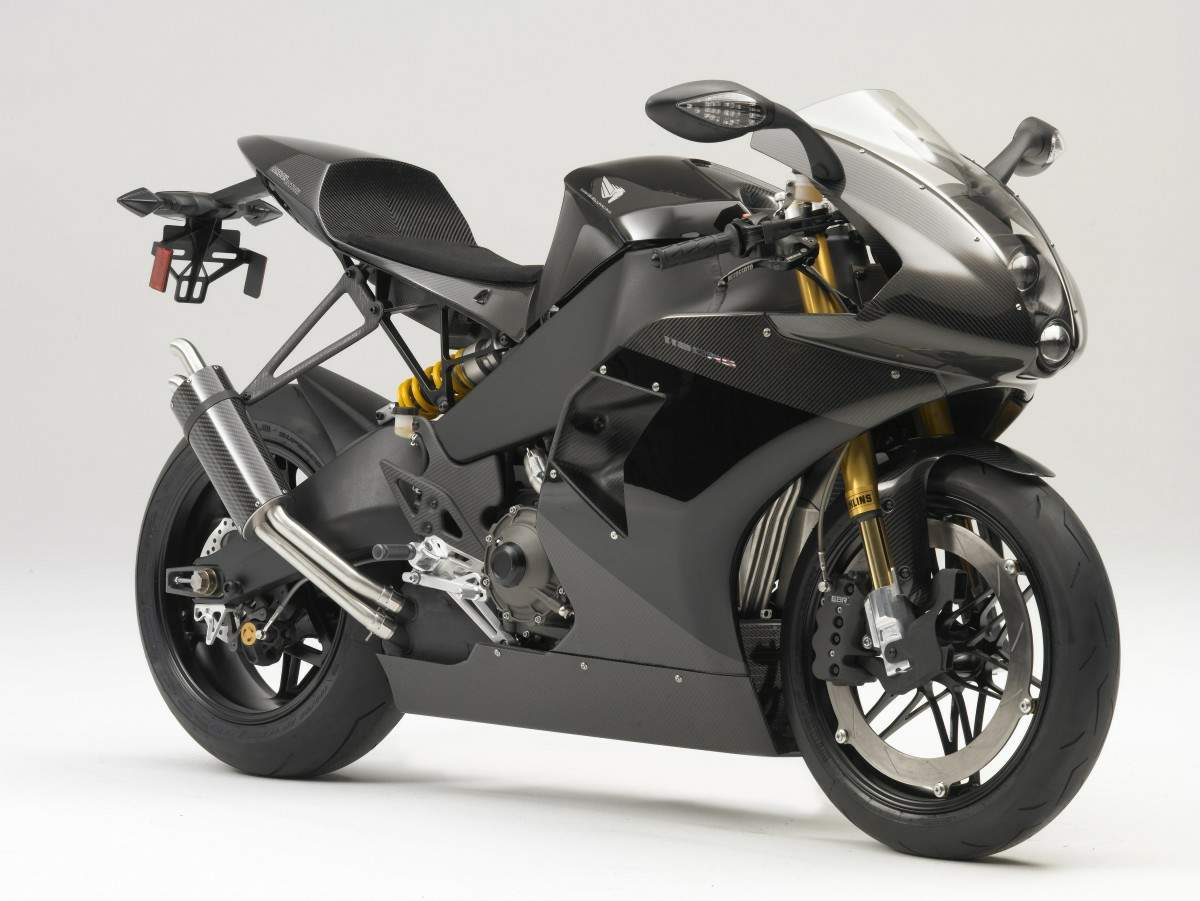

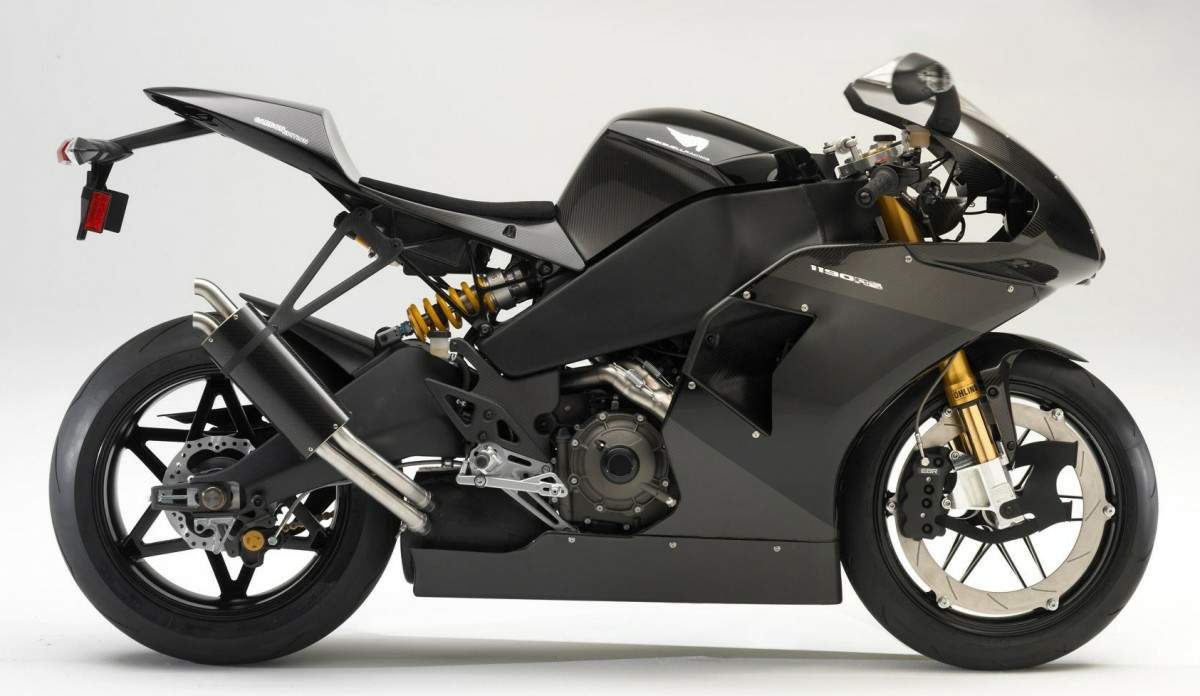

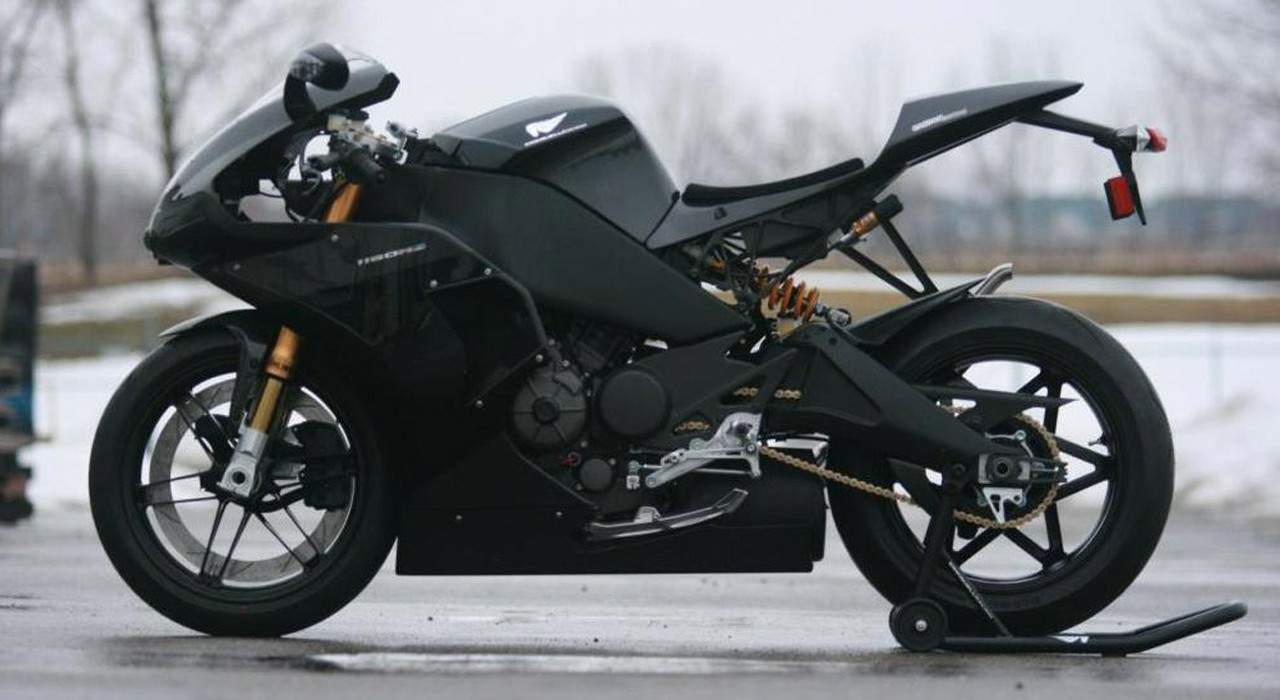

The 2012 Eric Buell Racing 1190RS. Exactly 100 of these bikes will be produced as a small limited edition, designed for true motorcycle enthusiasts

The engine was developed by Eric Buell, measuring 1191cc of displacement. The compression is reaching 13.6:1! bringing the power of this 72 degree V twin from stock 146hp to very usable 175hp at 9 750rpm with a maximum torque of 97Nm at 9 400rpm (quite high � like a real racing machine).

Front fork is �hlins 43 mm with TTX shock in the back. The brakes are true to the Buell design � a perimeter mounted dics with 8 piston calipers with an addition of an air duct � to cool the pads. The weight of only 176kg dry is achieved through the extensive usage of magnesium alloy in wheel manufacturing process.

The Erik Buell Racing RS 1190 will be produced in four colors: Inferno Abraxas, Boreas Frost, Armor Burnt and Pitch Black, but is possible to order the kit with full fairing and superstructure in carbon fiber.
